A Guide To Crane Accessories For Your Crawler Crane

In the world of heavy lifting equipment, crawler cranes stand out as powerful machines capable of handling substantial loads with precision. To further enhance their lifting capabilities and ensure smooth operation, the integration of well-designed crane accessories becomes crucial. In this guide, we will delve into two essential aspects of crane accessories: the crawler crane undercarriage and the crane accessories for lifting. By understanding these components, operators and construction professionals can maximize efficiency and safety in their crane operations.

Essential Crane Accessories For Enhancing Crawler Crane Mobility

The crawler crane undercarriage serves as its essential supporting base, comprising multiple vital components. These include the chassis, tracks, drive wheels, support wheels, idler wheels, guide wheels, and track tensioning devices. Let’s explore these components in more detail:

chassis of crawler crane

The chassis forms the load-bearing structure of the crawler crane undercarriage. It can be modular or integral in design.

modular design of crawler crane chassis

In modular configurations, the track frame adopts a framework structure, typically utilizing I-beams or welded box beams for the crossbeam. The track frame is often characterized by an open-bottom, gate-shaped cross-section, facilitating the installation of drive wheels, guide wheels, and support wheels.

integral design of crawler crane chassis

An integral design refers to a chassis that is built as a single, integrated structure. This means that the components of the chassis, such as the track frame, are welded or bolted together to form a unified and rigid structure. Integral designs often provide enhanced stability and durability due to the seamless integration of components.

Both modular and integral designs of a crawler crane undercarriage have their advantages and considerations. Modular designs offer flexibility and ease of maintenance, while integral designs provide robustness and structural integrity. The choice between the two depends on factors such as specific requirements, operating conditions, and preferences of the crane manufacturer and user.

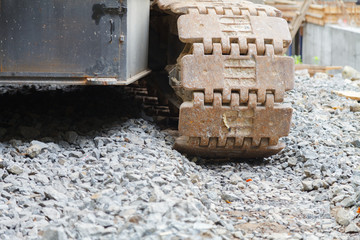

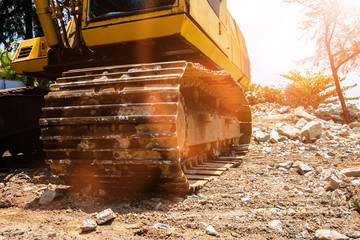

Crawler crane Track and Drive Wheel

The track and drive wheel system of a crawler crane is instrumental in supporting the machine’s weight and facilitating its movement. These crane accessories are meticulously designed to ensure stability, adaptability to different working conditions, and optimal traction.

The tracks are responsible for transferring the weight of the crane to the ground, distributing it evenly to minimize ground pressure. Their shape and construction are carefully engineered to provide stability and maneuverability. A typical track assembly consists of track plates, which are the contact surface with the ground, and track chains that connect and drive the plates.

Located at one end of the tracks, the drive wheels play a crucial role in propelling the crane forward or backward. They transmit power to the tracks, enabling the crane to navigate various terrains and surfaces effectively. The drive wheels are designed to provide sufficient traction, ensuring that the crane can overcome obstacles and operate smoothly in different work environments.

crane accessories for lifting

Crane accessories for lifting encompass various crucial components that are integral to the smooth and efficient operation of the crane. These accessories play a vital role in ensuring safe and effective lifting operations. Let’s explore four specific crane accessories in detail:

crane Wire Rope

As one of the primary crane accessories, the crane wire rope is essential for lifting operations. It serves as a robust and reliable connection between the crane’s hook and the load being lifted. Designed to withstand heavy loads, wire ropes provide the necessary strength and flexibility to support and balance the weight during lifting.

Steel Plate

 Another important crane accessory fo lifting is the steel plate. These plates are strategically used to reinforce the crane’s structure and provide additional support for lifting heavy loads. With their high strength and corrosion resistance properties, steel plates enhance the crane’s stability and ensure safe lifting operations.

Hydraulic Cylinder

Among the essential crane accessories, hydraulic cylinders play a critical role in controlling the crane’s movements. These devices enable precise and controlled adjustments of the crane’s boom and hoist rope. By utilizing hydraulic power, they facilitate smooth height and direction adjustments, enhancing the crane’s versatility and maneuverability during lifting operations.

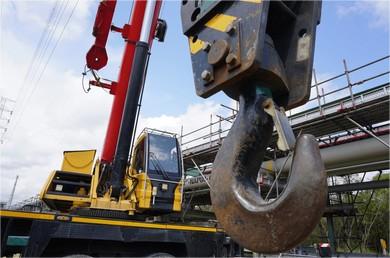

Hook Assembly For crane lifting operation

The hook assembly is a fundamental crane accessory specifically designed for lifting loads. It consists of a robust hook and associated components that ensure a secure connection to the load being lifted. Hook assemblies are engineered to withstand heavy loads and provide reliable lifting capabilities, making them an indispensable accessory for crane operations.

the components of crane hook assembly

The crawler crane hook assemblies are commonly used crane accessories in lifting machinery, consisting of the following components:

  • Hook: It is the core component of the hook assembly and is used for suspending and lifting cargo or equipment. Hooks are typically made of high-strength alloy steel and are designed with features such as lifting eyes, hook body, hook tip, and hook latch to ensure secure and reliable lifting operations.

  • Hook Bolt: Used to connect the hook to the lifting equipment (such as cranes or hoists) through the hook eye. Hook bolts are usually made of high-strength steel to ensure the hook can be securely fastened to the lifting equipment.

  • Hook Washer: Often installed on the hook bolt, hook washers are used to increase the contact area and distribute forces, preventing the hook from loosening or getting damaged during lifting operations. Hook washers can be made of materials such as metal or rubber and are resistant to wear and tear.

  • Hook Pin: The hook pin is used to secure the closure of the hook, ensuring that the hook does not accidentally open during lifting operations. Hook pins are typically made of high-strength steel and provide sufficient strength and durability to ensure the safety and reliability of the hook.

Value Crane - your quality supplier of crane accessories

Value Crane is your reliable supplier of high-quality crane accessories. As a professional supplier specializing in crawler crane parts, we are committed to providing you with exceptional products and services. Choose us, and you will get:

Various Kinds of Brands

Choose us for a wide selection of crane accessories from reputable brands like LiebherrSanyManitowoc, and more. We cater to your specific needs, ensuring quality and reliability. Experience the best in crane accessories with us.

Customized Service

Our team is dedicated to providing personalized service to meet your unique requirements. We will work closely with you to understand your needs and deliver tailor-made solutions.

Experienced Experts

Our knowledgeable professionals have extensive experience in the industry. They are ready to provide expert guidance and support, ensuring you make informed decisions about your crane accessories.

Quality Assurance

We prioritize quality and only source products from trusted manufacturers. Rest assured, the crane accessories you receive from us are of exceptional quality, built to withstand rigorous work conditions.
