The Installation Method Of Crane Track Shoe

Crane track shoe, also known as crane track pad or crawler track shoe, is a crucial component of crawler crane that provides traction and stability. Proper installation is essential to ensure smooth crane operation and maximize its lifespan.

Things to prepare before installation

Before installing crane track shoe for your crawler crane, it is essential to be well prepared. Here are some key aspects to consider:

Necessary Equipment

Gather all the required tools for the installation process, such as a jack, track press, torque wrench, hammer, and pry bar. Ensure they are in good working condition.

Safety Precautions

Evaluate the safety precautions necessary for the installation process. This may include wearing appropriate personal protective equipment (PPE) such as safety glasses, gloves, steel-toed boots, and a hard hat.

Work Area Preparation

Clear the work area of any obstacles or debris that may hinder the installation process. Ensure there is enough space to safely maneuver the crawler crane and crane track pad components.


Follow proper lockout/tagout procedures to de-energize and isolate any power sources to prevent accidental startup of the crane during the installation process.

Six Steps of installing crane track shoe

To install crawler crane track shoes, you can follow these general steps:

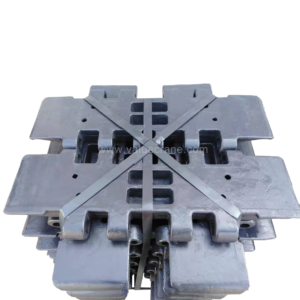

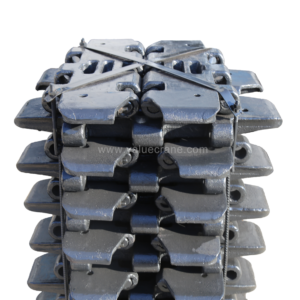

crane track shoe for crawler crane undercarriage

Step 1: Remove the Old crane Track pad

Loosen and remove the bolts or pins that secure the existing crane track pad to the crawler crane. Use appropriate tools such as wrenches, hydraulic jacks, or track presses to assist with the removal if needed.

Step 2: Clean the Mounting Surface

Thoroughly clean the mounting surface on the crane where the new crane track shoes will be installed. Remove any dirt, grease, or debris that may hinder a secure installation.

Step 3: Position the New crane Track pad

Carefully position the new track shoes on the mounting surface, ensuring they are aligned properly and fit securely. Pay attention to any alignment marks or indicators provided by the manufacturer for proper positioning.

Step 4: Secure the crane Track Shoes

Use the recommended bolts or pins provided by the manufacturer to secure the crane track shoes to the crane. Tighten them to the specified torque using a torque wrench or other appropriate tools.

Step 5: Check Alignment and Tension

 Once the crane track pads are installed, check their alignment to ensure they are properly positioned. Adjust if necessary to ensure even weight distribution and smooth movement.

Step 6: Test the Crane

After the installation is complete, test the crane to ensure that the crawler track shoes are functioning correctly. Move the crane in different directions, observing the movement of the crane track shoes and listening for any abnormal noises or vibrations.

The most critical factor for crawler track shoe installation

Achieving precise alignment is the most critical factor in the installation of crawler track shoes. Proper alignment ensures that the crane track shoes are positioned accurately in relation to the crane’s undercarriage and the mounting surface. This alignment is essential for even weight distribution, preventing excessive stress on individual track shoes and promoting balanced load-bearing capabilities. Accurate alignment also reduces friction and unnecessary strain on the undercarriage, resulting in smoother crane movement and improved operational efficiency.
